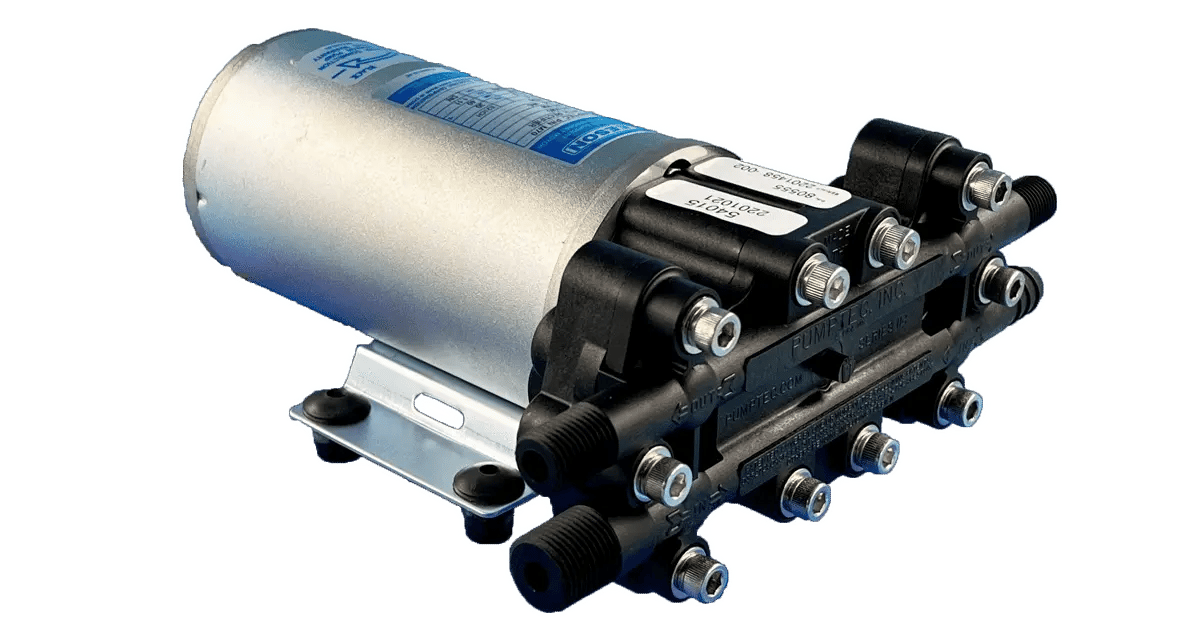

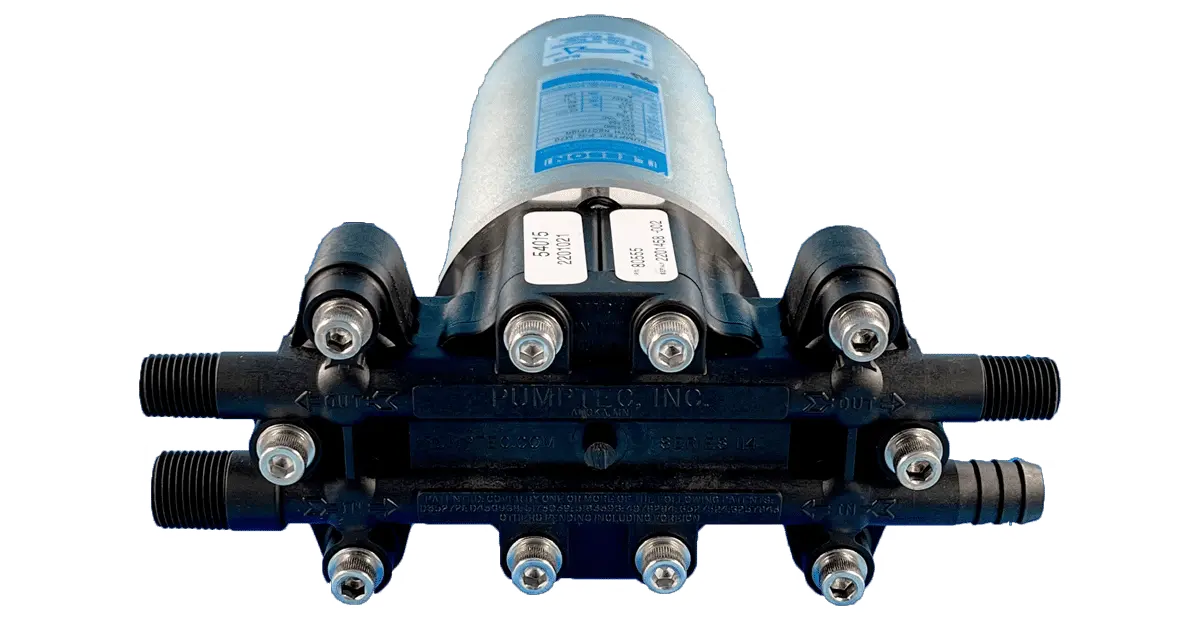

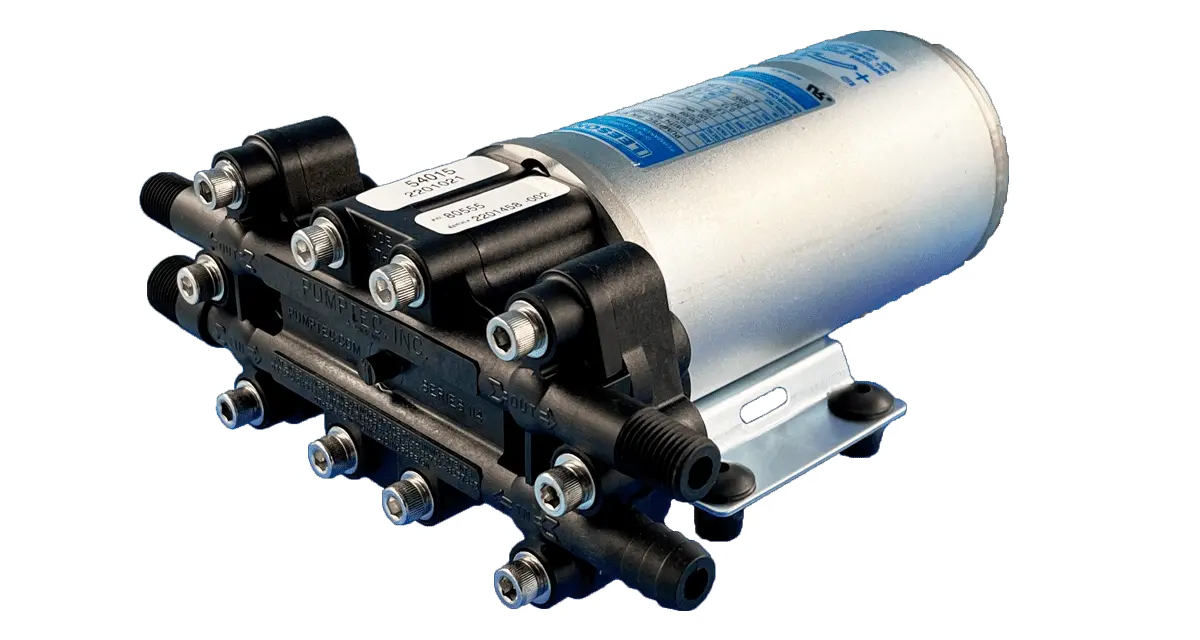

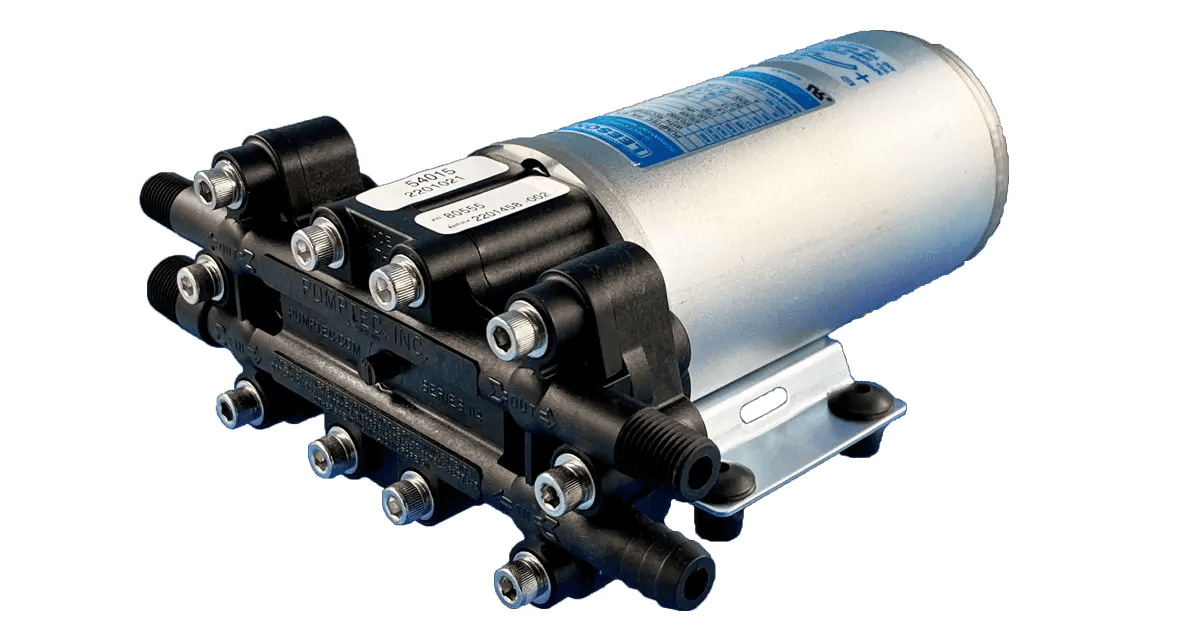

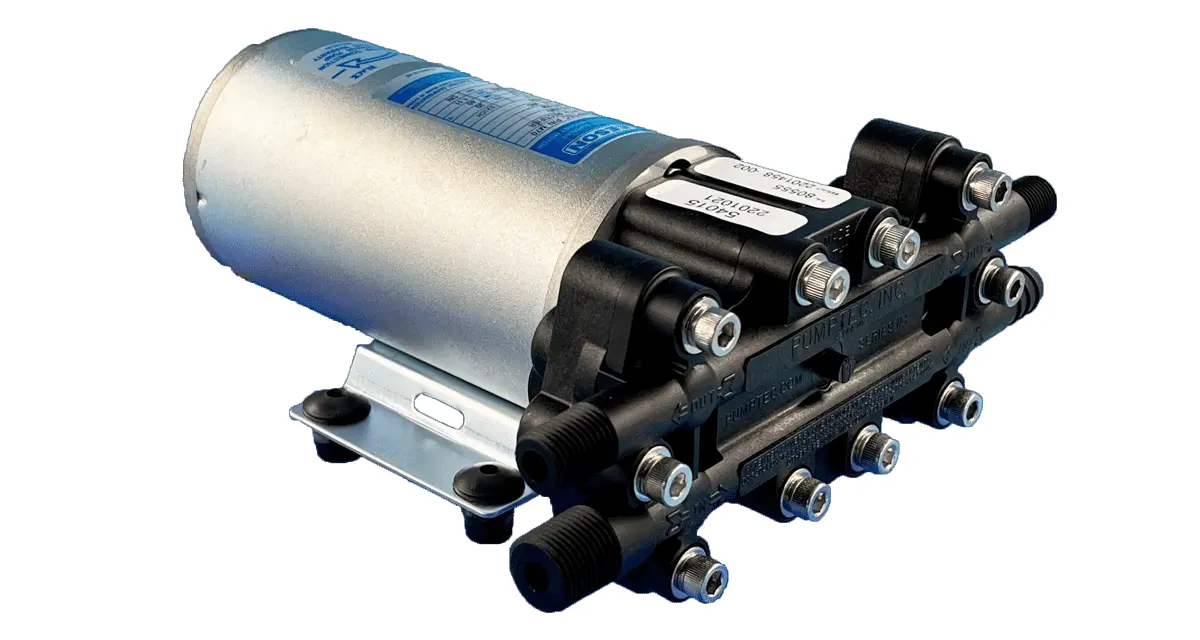

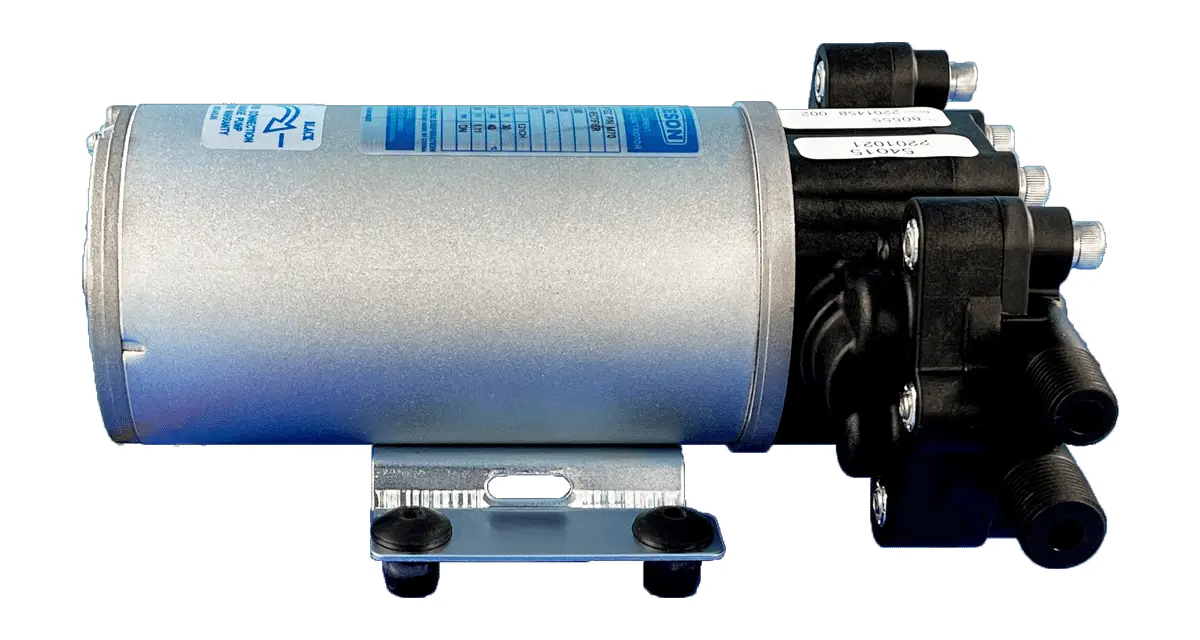

114T

Delivers service and application flexibility in a small pump that handles a variety of chemical uses up to 1.5gpm and up to 300psi.


Description

The body of the 114T is injection molded out of your choice of nylon (standard) or polypropylene (special ordered). Features multiple manifold port options including our standard horizontal ports as well as optional vertical ports or 6 ports. Designed to fit our 1/8hp permanent magnet DC motors in a variety of voltages. Can be configured with multiple elastomer choices to meet your fluid compatibility needs and can be optimized to your application flow rates. The 114T is proudly injection molded and built in USA.


Specifications

Body
Nylon
Plunger
Stainless Steel
Valves
Nylon
Inlet Port
(1) - 3/8" NPT (M), (1) - 1/2" BARB
Discharge Port
(2) - 1/4" NPT (M)
Max Fluid Temp.(°F)
140

Features

1
2
3
pumpmotor_114tm8215_80290




Configurations

Model
114T-12VDC
Max Pressure (PSI)
300
Open Flow (GPM)
1.25
Seals
PTFE/FKM
Volts
12VDC
Amps
15
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
114T-24VDC
Max Pressure (PSI)
250
Open Flow (GPM)
1.50
Seals
PTFE/FKM
Volts
24VDC
Amps
7.5
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
114T-120VAC
Max Pressure (PSI)
200
Open Flow (GPM)
1.50
Seals
PTFE/FKM
Volts
120VAC
Amps
1.6
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
114T-230VAC
Max Pressure (PSI)
250
Open Flow (GPM)
1.50
Seals
PTFE/FKM
Volts
230VAC
Amps
0.8
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
