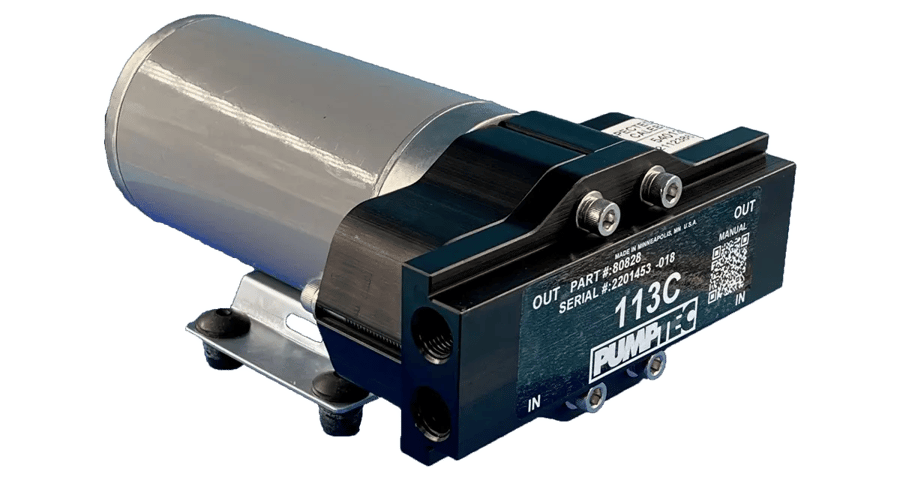

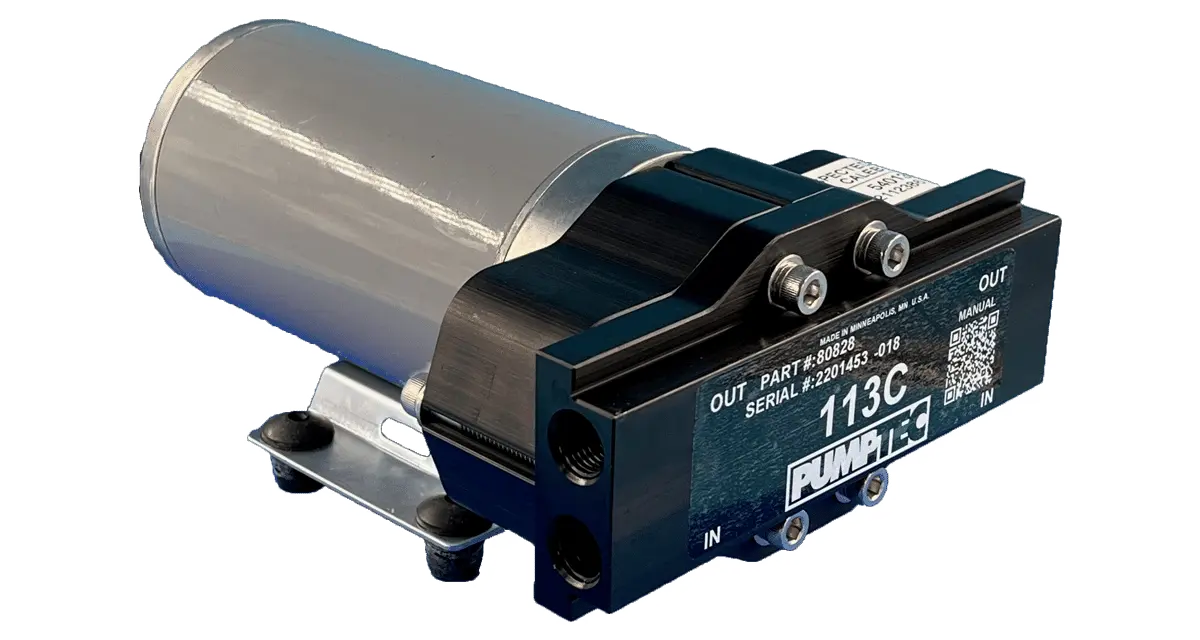

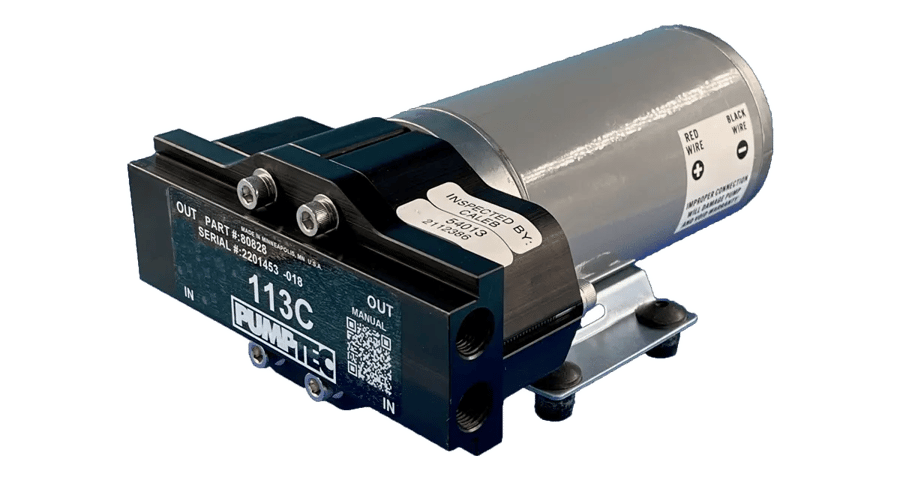

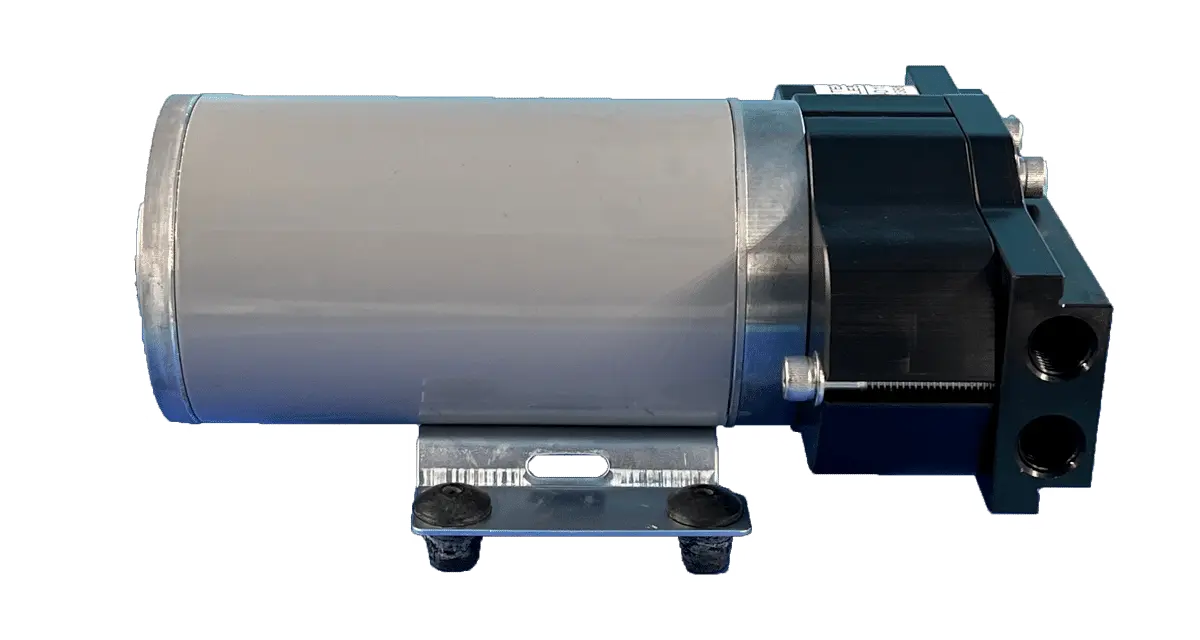

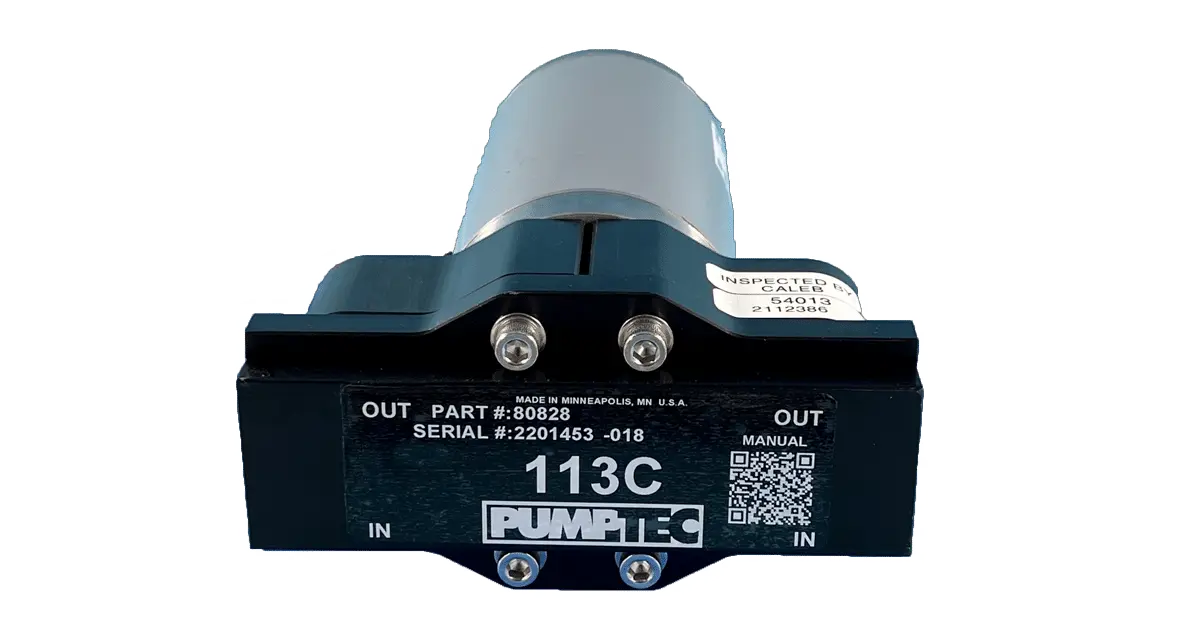

113C

The smallest, 1000psi misting and injection plunger pump available, offering unequaled performance and service.


Description

A smaller 3/8" plunger made from ceramic allows this plunger pump to perform up to 1000 psi for misting applications where atomized droplet size is important. Originally developed for the 1996 Atlanta Olympics for evaporative cooling equipment used in misting tents. It is also used for chemical injection and metering. Can be optimized to your application flow rates. Designed to fit our 1/8hp permanent magnet DC motors in a variety of voltages.


Specifications

Body
Hardcoat Aluminum
Plunger
Ceramic
Valves
Stainless Steel
Inlet Port
(2) - 1/4" NPT (F)
Discharge Port
(2) - 1/4" NPT (F)
Max Fluid Temp.(°F)
140

Features

1
2
3
113C-M70




Configurations

Model
113C-12VDC
Max Pressure (PSI)
1000
Open Flow (GPM)
0.25
Seals
NBR
Volts
12VDC
Amps
15
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
113C-24VDC
Max Pressure (PSI)
1200
Open Flow (GPM)
0.25
Seals
NBR
Volts
24VDC
Amps
6.5
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
113C-120VAC
Max Pressure (PSI)
1200
Open Flow (GPM)
0.25
Seals
NBR
Volts
120VAC
Amps
1.6
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
113C-230VAC
Max Pressure (PSI)
1200
Open Flow (GPM)
0.25
Seals
NBR
Volts
230VAC
Amps
0.8
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
