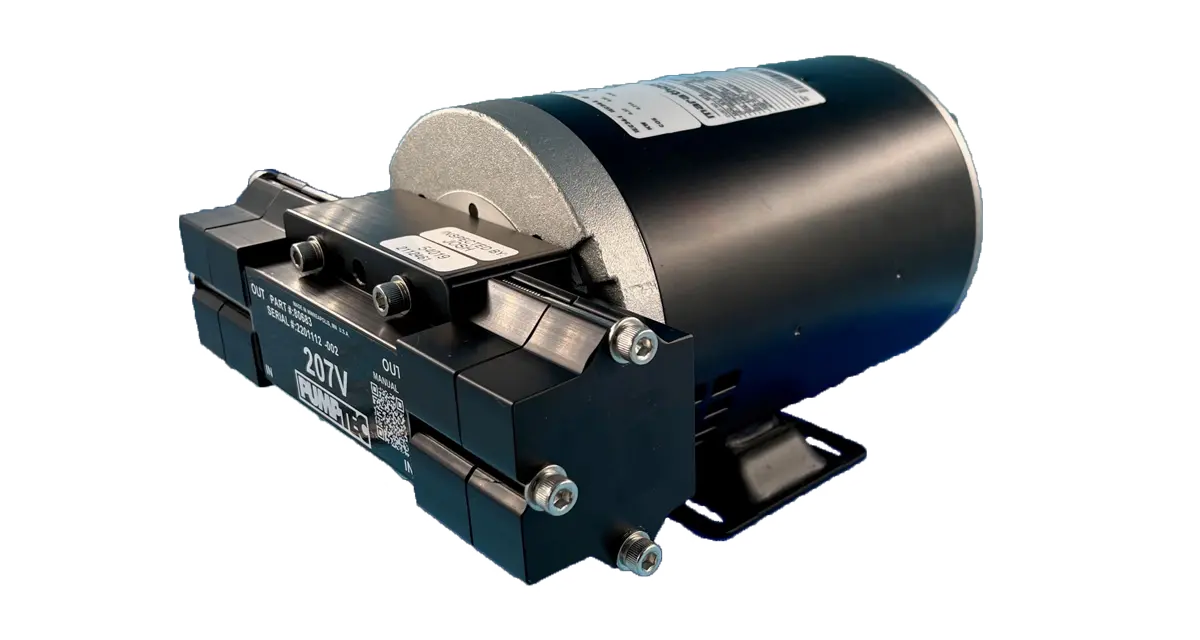

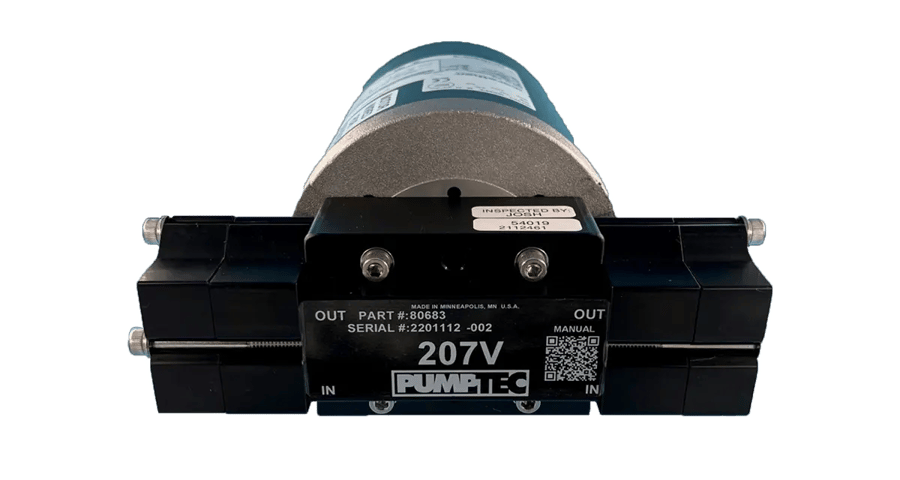

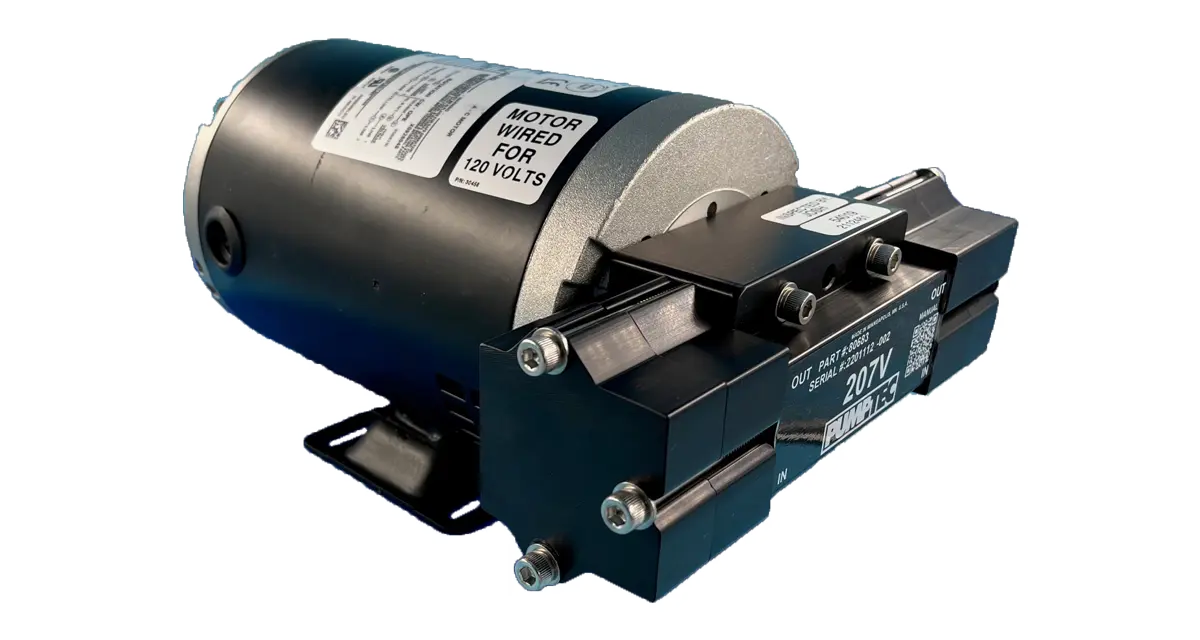

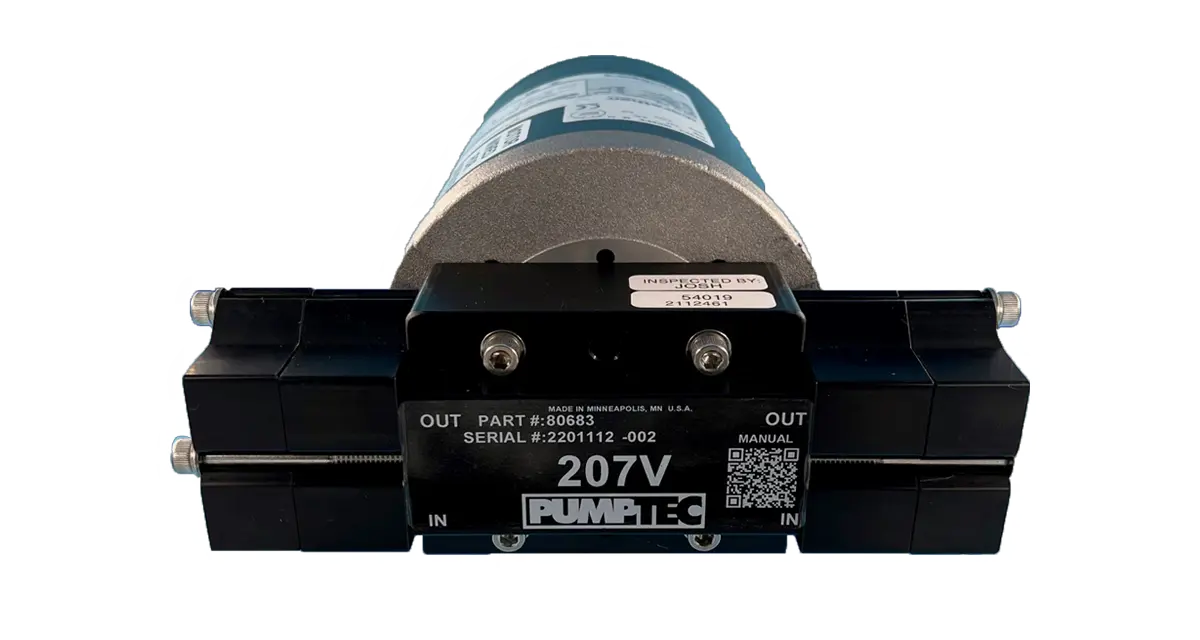

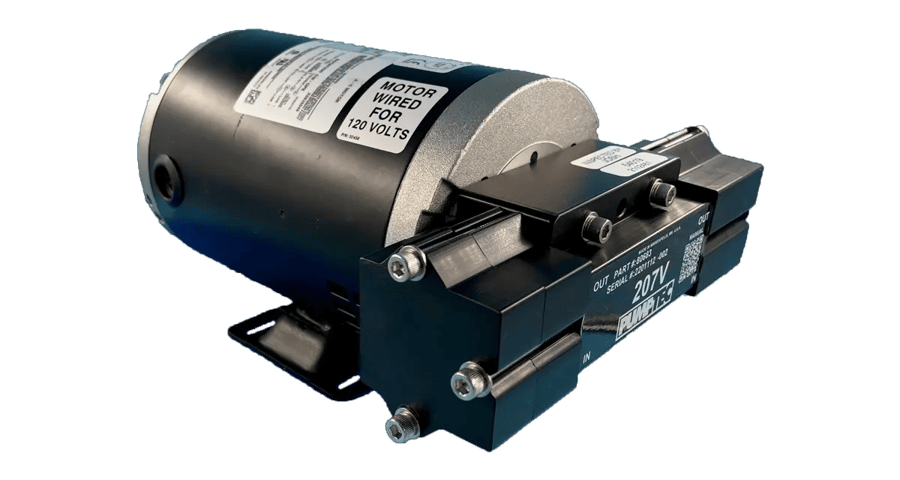

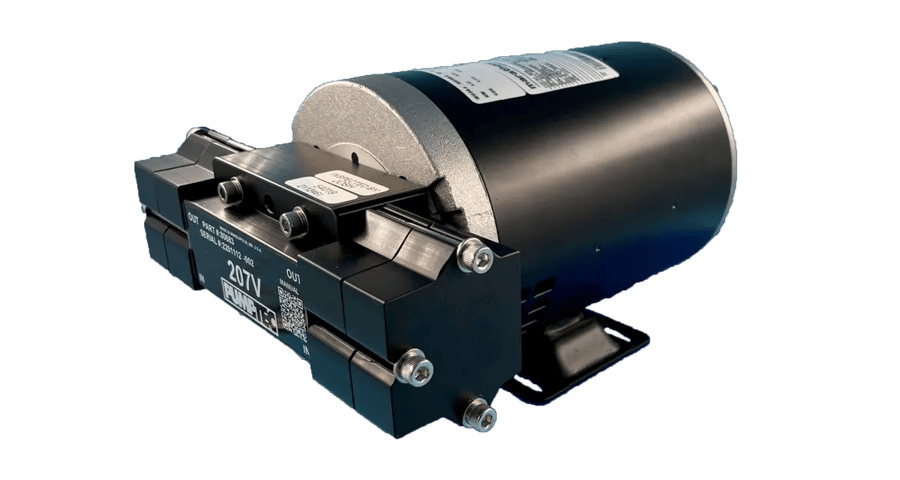

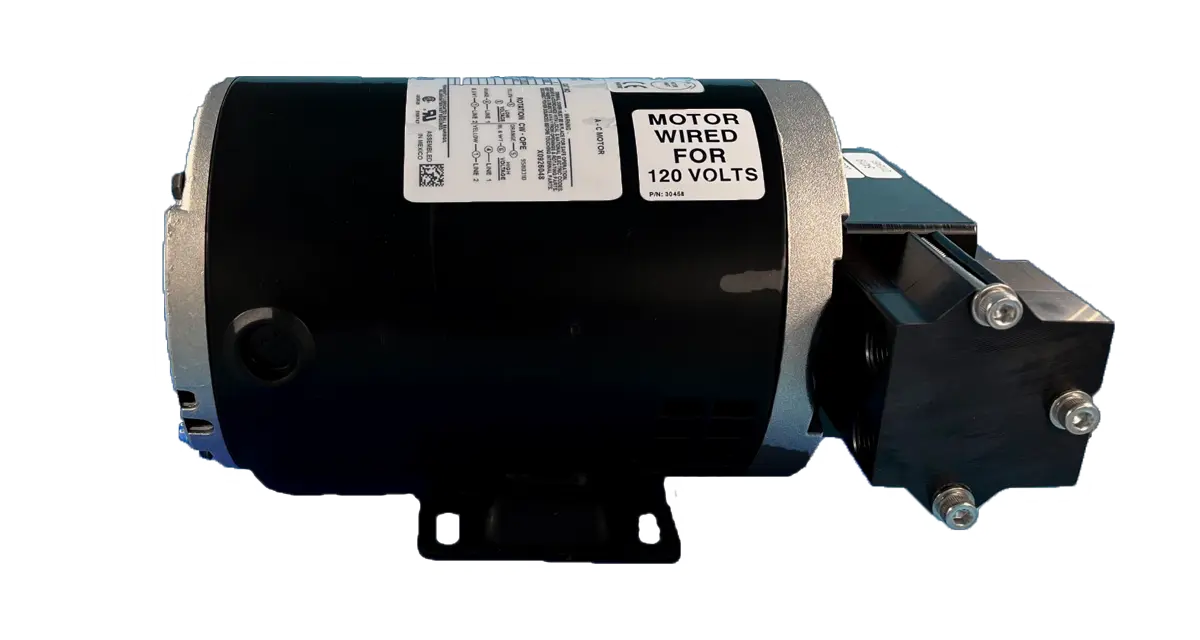

207V

Dominates the portable carpet cleaning market up to 1.0gpm and up to 600psi.


Description

The legendary 207V plunger pump was originally developed to meet the performance needs of commercial carpet extractor manufacturers. The low flow rate and 500psi spray cleans soft carpet fibers without leaving the carpet too wet and is optimized for their inline heaters on heated extractors. Since there is no oil reservoir in the pump design, it can be tipped completely upside down without causing any issue. Typically sold as a system with one of our panel mount pressure regulators. Capable of flow rates up to 1.5gpm and pressures up to 600psi. Designed to fit our 1/4hp permanent magnet DC motors and 1/2hp AC induction motors. Performance can be optimized to your application flow rates. This pump is proudly made in the USA from aircraft-grade aluminum and stainless steel.


Specifications

Body
Anodized Aluminum
Plunger
Stainless Steel
Valves
Stainless Steel
Inlet Port
(2) - 3/8" NPT (F)
Discharge Port
(2) - 3/8" NPT (F)
Max Fluid Temp.(°F)
140

Features

1
2
3
207V-M58




Configurations

Model
207V-120V PMDC
Max Pressure (PSI)
600
Open Flow (GPM)
1.00
Seals
NBR
Volts
120VAC
Amps
3.2
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
207V-230V PMDC
Max Pressure (PSI)
600
Open Flow (GPM)
1.00
Seals
NBR
Volts
230VAC
Amps
1.6
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
207V-120/230VAC
Max Pressure (PSI)
600
Open Flow (GPM)
1.50
Seals
NBR
Volts
120/230VAC
Amps
3.2/1.6
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
